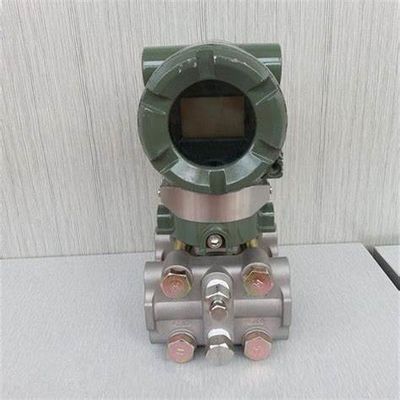

EJA430E-FHS4G-919DD Yokogawa EJA430E Gauge Pressure Transmitter with Hart Proto

EJA430E-FHS4G-919DD Yokogawa EJA430E Gauge Pressure Transmitter with Hart Proto
EJA430E-FHS4G-919DD Yokogawa EJA430E Gauge Pressure Transmitter with Hart Proto

Ampliación de imagen :  EJA430E-FHS4G-919DD Yokogawa EJA430E Gauge Pressure Transmitter with Hart Proto

Datos del producto:
Lugar de origen: Japón
Nombre de la marca: YOKOGAWA
Certificación: ROHS
Número de modelo: EJA430E-FHS4G-919DD/KS26/D3/X2/M11/T11
Pago y Envío Términos:
Cantidad de orden mínima: 1
Precio: Negotiable
Detalles de empaquetado: Cartón
Tiempo de entrega: a petición
Condiciones de pago: T/T
Capacidad de la fuente: 1~1000PCS
Descripción detallada del producto
Dimensiones de la unidad: (W x L x H): los 40*35*30cm Tiempo de respuesta: 90ms
fabricante: YOKOGAWA Modelo: EJA430E-FHS4G-919DD/KS26/D3/X2/M11/T11
ESTABILIDAD: el ±0.1% de URL por 7 años Exactitud: el ±0.055% del palmo
Origen: Japón Garantía: 12 meses
Nombre de productos: Transmisor de presión de indicador de EJA430E

EJA430E-FHS4G-919DD Yokogawa EJA430E Gauge Pressure Transmitter with Hart Proto





Description:



Manufacturer : Yokogawa

Product No. : EJA430E-FHS4G-919DD/KS26/D3/X2/M11/T11

Product Type : Differential Pressure Transmitter

Measurement span(capsule) : M = 1 to 100 kPa {100 to 10000 mmH2O} {4 to 400 inH2O} {10 to 1000 mbar}

Wetted parts material : S

Body : SCS14A

Capsule : SUS316L

Vent plug : SUS316

Process connections : 4 = with 1/2 NPT female process connector

Bolts and nuts materiaL : B = SUS630, Maximum working pressure : 16 MPa {160 kgf/cm2}*9

Installation : 3 = Vertical impulse piping type, right side high pressure, process connector downside

Electrical connection : 2 = 1/2 NPT female, two electrical connections without blind plug

Integral indicator : D = Digital indicator

Mounting bracket : C = SECC Carbon steel 2-inch pipe mounting (L type)

Factory Mutual (FM) : FF1 =

FM Explosionproof Approval *1 *3 *4

Applicable standard: FM3600, FM3615, FM3810, ANSI/NEMA250

Explosionproof for Class I, Division 1, Groups B, C and D

Dust-ignitionproof for Class II/III, Division 1, Groups E, F and G

Hazardous (classified) locations, indoors and outdoors (NEMA 4X)

Temperature class: T6

Amb. Temp.: –40 to 60C (–40 to 140F)

Painting Coating change : X1 = Epoxy resin-baked coating

Calibration units : D3 = bar calibration (bar unit)

Shipping Weight : 8 Kg







The EJA430E is a traditional-mount gauge pressure transmitter in the series.



EJA430E features include:
0.055% Accuracy (0.04% Accuracy optional)
0.1% Stability per 10 years
90 ms Response Time
Exida and TUV SIL 2/3 Certified
Local Parameter Setting (LPS)






  Hot sale Original Japanese Yokogawa 4-20ma Pressure Transducer EJA110E
L Capsule M Capsule H Capsule V Capsule
Range -10 to 10 kPa -100 to 100 kPa -500 to 500 kPa -0.5 to 14 MPa
(-40 to 40 inH2O) (-400 to 400 inH2O) (-2000 to 2000 inH2O) (-70 to 2000 psi)
Span 0.5 to 10 kPa 1 to 100 kPa 5 to 500 kPa 0.14 to 14 MPa
(2 to 40 inH2O) (4 to 400 inH2O) (20 to 2000 inH2O) (20 to 2000 psi)
Accuracy ±0.075% ±0.065% ± 0.065% ±0.065%
Degrees of Protection IP67, NEMA 4X, and JIS C0920 immersion proof
Certificates FM, CENELEC ATEX, CSA, IECEx
Output 4 to 20 mA DC, FOUNDATIONTM fieldbus or PROFIBUS PA 2-wire system with digital communication
Supply Voltage BRAIN and HART:10.5 to 42 V DC (10.5 to 30 V DC for Intrinsically safe type)
Fieldbus:9 to 32 V DC (9 to 24 V DC for Entity model and 9 to 17.5 V DC for FISCO model)
Ambient temperature -40 to 85 deg C (-40 to 185 deg F) (general use type)
-30 to 80 deg C (-22 to 176 deg F) (with integral indicator)
Process Temperature -40 to 120 deg C (-40 to 248 deg F) (general use type)
Maximum Working Pressure 16MPa(2300psi)
3.5MPa(500psi) for L capsule with special materials
Mounting 2-inch pipe mounting
Wetted parts material Capsule SUS316L(Diaphragm material is Hastelloy C-276),
Hastelloy C-276, Tantalum, Monel
Cover flange SUS316, Hastelloy C-276, Monel
Housing Cast aluminum alloy or SUS316 equivalent stainless steel (optional)







Important Terms:



1. Quote Validity 30 days

2. Offered product genuine and brand new.

3. Manufacturer name & country of origin: Yokogawa & Japan

4. Delivery lead time: 8-10 weeks

5. Shipping cost to us: We quote when goods ready for shipment

6. Shipping mode (Air/Sea): Air
