Gran internacional del sistema limitado
|
Datos del producto:
Pago y Envío Términos:
|
| Modelo: | EJA118E-JMSCJ-912NB-WA13A1SW00-AA25/D4 | Determinación: | Ajuste local del parámetro (LPS) |
|---|---|---|---|
| Exactitud:: | exactitud del ± 0,2% | fabricante: | YOKOGAWA |
| Peso del envío: | 25kg | Nombre de producto: | Transmisor del DP con los sellos remotos del diafragma |
| Tiempo de respuesta: | ms 200 | Capilar: | Remuneración flúida de la densidad del terraplén capilar activo |
| Embalaje: | Cartón estándar de Yokogawa |

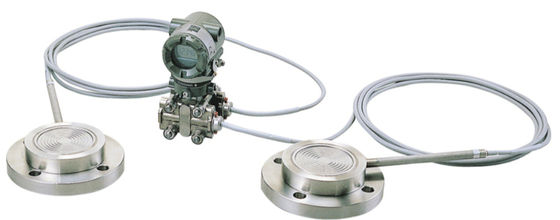

EJA118E-JMSCJ-912NB EJA118E DP Transmitter with Remote Diaphragm Seals
Description:
Manufacturer : Yokogawa
Product No. : EJA118E-JMSCJ-912NB-WA13A1SW00-AA25/D4
Product type : Diaphragm Sealed Differential Pressure Transmitter
Output signal : J = 4 to 20 mA DC with digital communication (HART 5/HART 7 protocol)
Measurement span (capsule) : M = 2.5 to 100 kPa (10 to 400 inH2O)
S : always S
C : always C
Coverflange bolts and nuts material : G = 316L SST
Installation : 9 = Horizontal piping type and left side high pressure
Integral indicator : D = Digital indicator
Process connection style : W = Flush type
Flange rating : A4 = ANSI class 600
Process connection size (Process flange size) : 2 = 2-inch (50 mm)
Flange material : C = 316 SST
Gasket contact surface : 2 = Flat (no serration)
Wetted parts material : SW = 316L SST [Diaphragm], 316L SST [Others]
Flushing connection ring : 0 = None
Extension : 0 = None
Fill fluid : A = For general use (silicone oil), –10 to 250°C Process temperature,–10 to 60°C Ambient temperature
Capillary connection : A = Side of diaphragm seal unit
2 : Always 2
Capillary length : 5 = 5 m
ATEX : KS21 = ATEX Intrinsically safe Approval
Weight : 17.6 Kg
Shipping Weight : 23 Kg
Additional Informaiton:
The EJA-E series of transmitters is Yokogawa's most recent evolution of the DPharp family. Released in 2012, it combines the ruggedness and success of the work-horse EJA-E series with the performance of the thoroughbred EJX-A series to deliver the type of product you have come to expect from Yokogawa.The EJA118E is a Differential Pressure Transmitter with remote diaphragm seals.
EJA118E features include:
Common Models:
| EJA118E-DMSCG-912DB-WJ13B2SW00-BA23/D4 |
| EJA118E-JMSCJ-912NB-WA13A1SW00-AA25/D4 |
| EJA118E-FMSCG-914DJ-WA13B2TW00-AA23/D3/M2W |
| EJA118E-JMSCC-910DB-WA13B2SW00-AA24/TF1/HE |
| EJA118E-JMSCG-919EJ-WD23C2HW00-BA23/KU22/X2/N4 |
| EJA118E-JMSCG-919EJ-WD23C2SW00-BA23/KU22/X2/N4 |
| EJA118E-JMSCG-919EJ-WD23C2SW00-BA2A/KU22/X2/N4 |
| EJA118E-FMSCG-919DB-WA43C1SW00-2A24/X2/M2W/T58 |
| EJA118E-FMSCG-919DB-WA13C1SW00-1A2A/X2/M2W/T52 |
| EJA118E-FHSCJ-914DB-WA12B1SW00-AA2A/KS26/D3/M2W |
| EJA118E-JMSCJ-919DB-WA42C2SW00-AA23/KS21/D3 |
| EJA118E-JMSCJ-919DB-WA22C2SW00-AA27/KS21/D3 |
| EJA118E-JMSCG-919DB-WA22C1SW00-BA26/KS21/M2W |
| EJA118E-FHSCG-919DN-WA23C2SW00-BA2A/KS26/T56 |
| EJA118E-FMSCG-919DB-WA13C1SW00-EA25/KS26/X2/D4/M2W/T52 |
| EJA118E-JMSCG-92DDJ-WA23C2TW00-AA25/KS21/A/D4/M2W/T56 |
| EJA118E-JMSCG-93DDB-WA12C1SW00-BA24/KU22/D4/M2W/T52 |
| EJA118E-JMSCG-93DDB-WA12C1SW00-EA24/KU22/D4/M2W/T52 |
| EJA118E-JMSCG-924DB-WA23C2SW00-AA25/KS21/D4/M2W/T56 |
| EJA118E-FMSCJ-914DB-WA22B1SW00-AA25/KS26/D4/M2W |
| EJA118E-FMSCG-919DB-WA23C1SW00-AA25/X2/D4/T56/M2W |
| EJA118E-FMSCG-919DB-WA23C1SW00-BA25/KS26/X2/D4/T56/M2W |
| EJA118E-FMSCG-919DB-WA13C1SW00-BA25/KS26/X2/D4/T52/M2W |
| EJA118E-JMSCG-919DB-WA12C1SW00-AA25/X2/D4/M2W/T52/KU22 |
