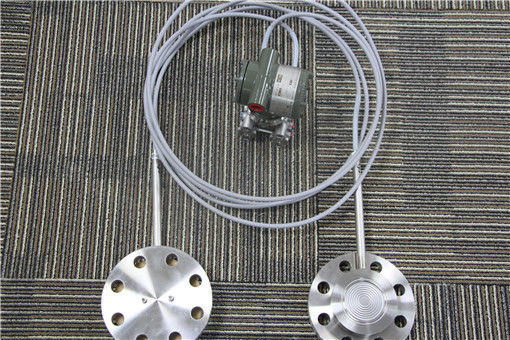

EJA118E-FHSCJ-914DB EJA118E DP Transmitter with Remote Diaphragm Seals

EJA118E-FHSCJ-914DB EJA118E DP Transmitter with Remote Diaphragm Seals

Description:

Manufacturer : Yokogawa

Product No. : EJA118E-FHSCJ-914DB-WA12B1SW00-AA2A/KS26/D3/M2W

Product type : Diaphragm Sealed Differential Pressure Transmitter

S : always S

C : always C

Coverflange bolts and nuts material : G = 316L SST

Installation : 9 = Horizontal piping type and left side high pressure

Electrical connection : 4 = M20 female, two electrical connections without blind plugs

Integral indicator : D = Digital indicator

Mounting bracket : N = None

Process connection style : W = Flush type

Flange rating : A4 = ANSI class 600

Process connection size (Process flange size) : 2 = 2-inch (50 mm)

Flange material : C = 316 SST

Gasket contact surface : 2 = Flat (no serration)

Wetted parts material : SW = 316L SST [Diaphragm], 316L SST [Others]

Flushing connection ring : 0 = None

Extension : 0 = None

Weight : 17.6 Kg
Shipping Weight : 23 Kg

Additional Informaiton:

The EJA-E series of transmitters is Yokogawa's most recent evolution of the DPharp family. Released in 2012, it combines the ruggedness and success of the work-horse EJA-E series with the performance of the thoroughbred EJX-A series to deliver the type of product you have come to expect from Yokogawa.The EJA118E is a Differential Pressure Transmitter with remote diaphragm seals.

EJA118E features include:

± 0.2% Accuracy
200 ms Response Time
Exida and TUV SIL2 / SIL3 Certified
Local Parameter Setting (LPS)
10-segment Signal Characterizer
Active Capillary Fill Fluid Density Compensation
