Datos del producto:
Pago y Envío Términos:
|
| Modelo: | EJA510E-JAS4N-017DL/D3 | Máximo sobre la presión: | 8.700 psia |
|---|---|---|---|
| Exactitud:: | exactitud del ± 0,055% (0,04% exactitudes opcionales) | fabricante: | YOKOGAWA |
| Embalaje: | Cartón estándar de Yokogawa | Nombre de producto: | Transmisor en línea de la presión absoluta del soporte |
| Tiempo de respuesta: | ms 90 | ESTABILIDAD: | estabilidad del ± 0,2% por 10 años |
| Certificado: | Exida y el TUV SIL 2/3 certificaron | Determinación: | Ajuste local del parámetro (LPS) |

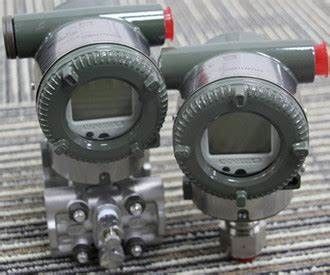

EJA510E-JAS4N-017DL/D3 EJA510E In-Line Mount Absolute Pressure Transmitter
Description:
Manufacturer : Yokogawa
Product No. : EJA510E-JAS4N-017DL/D3
Product type : EJA510E Absolute Pressure Transmitter
Output signal : J = 4 to 20 mA DC Output with digital communication
Measurement span (capsule) : A = 0.1 to 2 MPa (14.5 to 290 psi)
Wetted parts material : S = Process connector 316L SST # , Diaphragm Hastelloy C-276 *3#, Others 316L SST #
Process connections : 4 = 1/2 NPT female
N = Always N
0 = Always 0
Amplifier housing : 1 = Cast aluminum alloy
Electrical connection : 7 = 1/2 NPT female, two electrical connections with a blind plug*7
Mounting bracket : L = 316 SST 2-inch pipe mounting
Shipping weight : 4Kg
The EJA-E series of transmitters is Yokogawa's most recent evolution of the DPharp family. Released in 2012, it combines the ruggedness and success of the work-horse EJA-E series with the performance of the thoroughbred EJX-A series to deliver the type of product you have come to expect from Yokogawa.The EJA510E is our in-line mount absolute pressure transmitter in the series.
EJA510E features include:
Avaialble with HART 5/7, 1 to 5 VDC HART 7 (Low Power), FOUNDATION Fieldbus, PROFIBUS PA, or BRAIN communication.
EJX110A Differential Pressure Transmitter
EJX118A Diaphragm Sealed Differential Pressure Transmitter
EJX130A Differential Pressure Transmitter
EJX120A Differential Pressure Transmitter
EJX310A Absolute Pressure Transmitter
EJX430A Gauge Pressure Transmitter
EJX440A Gauge Pressure Transmitter
EJX510A and EJX530A Absolute and Gauge Pressure Transmitter
EJX610A and EJX630A Absolute and Gauge Pressure Transmitter
EJX210A Flange Mounted Differential Pressure Transmitter
EJA110E Differential Pressure Transmitter
EJA115E Low Flow Transmitter
EJA118E Diaphragm Sealed Differential Pressure Transmitter
EJA510E and EJA530E Absolute and Gauge Pressure Transmitter
EJA120E Differential Pressure Transmitter
EJA130E Differential Pressure Transmitter
EJA210E Flange Mounted Differential Pressure Transmitter
EJA310E Absolute Pressure Transmitter
EJA430E Gauge Pressure Transmitter
EJA438E Diaphragm Sealed Gauge Pressure Transmitter
EJA438E/Z Diaphragm Sealed Gauge Pressure Transmitter (Inner Diaphragm type)
EJA440E Gauge Pressure Transmitter
EJA530E In-Line Mount Gauge Pressure Transmitter
| EJA510E-JAS4N-017DL/D3 |
| EJA510E-JAS4N-017DL/D4 |
| EJA510E-JBS4N-019DN/D4 |
| EJA510E-DAS7N-012DN/D4/HE |
|
EJA510E-JCS4N-019DL/KU22 |
