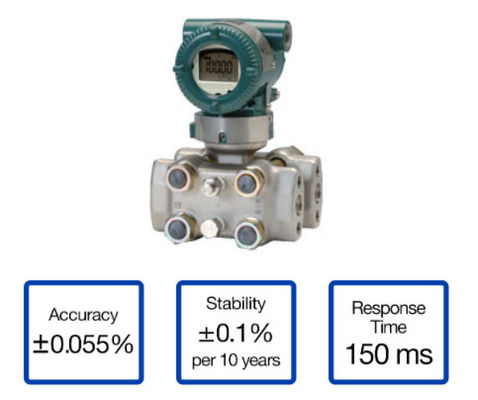

EJA130E-JMS4G-712DD/D4 Yokogawa EJA130E Differential Pressure Transmitter

EJA130E-JMS4G-712DD/D4  Yokogawa EJA130E Differential Pressure Transmitter
EJA130E-JMS4G-712DD/D4  Yokogawa EJA130E Differential Pressure Transmitter

Ampliación de imagen :  EJA130E-JMS4G-712DD/D4 Yokogawa EJA130E Differential Pressure Transmitter

Datos del producto:
Lugar de origen: Japón
Nombre de la marca: YOKOGAWA
Certificación: ROHS
Número de modelo: EJA130E-JMS4G-712DD/D4
Pago y Envío Términos:
Cantidad de orden mínima: 1pc
Precio: negotiable
Detalles de empaquetado: original de la fábrica
Tiempo de entrega: 8-10weeks
Condiciones de pago: T/T
Capacidad de la fuente: 50PCS/Month
Descripción detallada del producto
Modelo: EJA130E-JMS4G-712DD/D4 fabricante: YOKOGAWA
Exactitud:: exactitud del ± 0,055% Nombre de producto: Transmisor de presión diferenciada
Tiempo de respuesta: ms 150 ESTABILIDAD: estabilidad del ± 0,1% por 10 años
Certificado: Exida y el TUV SIL 2/3 certificaron Embalaje: Cartón estándar de Yokogawa

EJA130E-JMS4G-712DD/D4 Yokogawa EJA130E Differential Pressure Transmitter









Decription:

Manufacturer : Yokogawa
Product No. : EJA130E-JMS4G-712DD/D4
Product type : Differential Pressure Transmitter
Output signal : J = 4 to 20 mA DC with digital communication (HART 5/HART 7 protocol)*1
Measurement span (capsule) : M = 1 to 100 kPa (4 to 400 inH2O)
Wetted parts material *2 : S = Cover flange F316 SST, Process connector ASTM CF-8M *1, Capsule Hastelloy C-276 *2 (Diaphragm) F316L SST, 316L SST (Others), Capsule gasket Teflon-coated 316L SST, Vent/Drain plug 316 SST
Amplifier housing : 2 = ASTM CF-8M stainless steel*5
Electrical connection : 4 = M20 female, two electrical connections without blind plugsIntegral indicator : D = Digital indicator*7
Mounting bracket : N = None
Shipping Weight : 10Kg



Additional Informaiton:

The EJA-E series of transmitters is Yokogawa's most recent evolution of the DPharp family. Released in 2012, it combines the ruggedness and success of the work-horse EJA-A series with the performance of the thoroughbred EJX-A series to deliver the type of product you have come to expect from Yokogawa.



The EJA130E is designed to measure accurately, transmit quickly, and do it reliably over time.



Accurately: ± 0.055% Accuracy
Reliably: ± 0.1% Stability per 10 years
Quickly: 150 ms Response Time.
