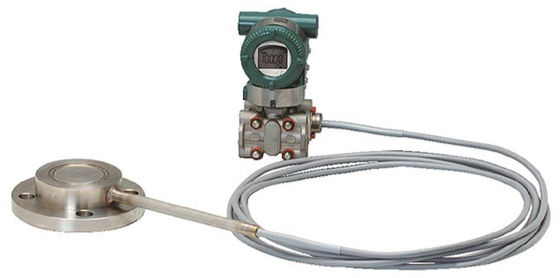

EJA438E-DASCG-912DB Gauge Pressure Transmitter with Remote Diaphragm Seal

EJA438E-DASCG-912DB Gauge Pressure Transmitter with Remote Diaphragm Seal
EJA438E-DASCG-912DB Gauge Pressure Transmitter with Remote Diaphragm Seal

Ampliación de imagen :  EJA438E-DASCG-912DB Gauge Pressure Transmitter with Remote Diaphragm Seal

Datos del producto:
Lugar de origen: Japón
Nombre de la marca: YOKOGAWA
Certificación: ROHS
Número de modelo: EJA438E-DASCG-912DB-WJ13B2SW00-BA22
Pago y Envío Términos:
Cantidad de orden mínima: 1pc
Precio: negotiable
Detalles de empaquetado: original de la fábrica
Tiempo de entrega: 8-10weeks
Condiciones de pago: T/T
Capacidad de la fuente: 50PCS/Month
Descripción detallada del producto
Modelo: EJA438E-DASCG-912DB-WJ13B2SW00-BA22 Nombre de producto: Transmisor de presión de indicador con el sello remoto del diafragma
Tiempo de respuesta: 200 ms tiempo de respuesta Exactitud: exactitud del ± 0,2%
Certificado: Exida y el TUV SIL 2/3 certificaron Capilar: Remuneración flúida de la densidad del terraplén capilar activo
Seeting: Ajuste local del parámetro (LPS) fabricante: YOKOGAWA

EJA438E-DASCG-912DB Gauge Pressure Transmitter with Remote Diaphragm Seal









Description:


Manufacturer : Yokogawa

Product No. : EJA438E-DASCG-912DB-WJ13B2SW00-BA22

Product Type : Diaphragm sealed gauge pressure transmitter

Output signal : D = 4 to 20 mA DC with digital communication (BRAIN protocol)

Measurement span (capsule) : A = 0.06 to 3.5 MPa (8.6 to 500 psi)

S : Always S

C : Always C

Coverflange bolts and nuts material : G = 316L SST

Installation : 9 = Horizontal piping type and left side high pressure

Amplifier housing : 1 = Cast aluminum alloy

Electrical connection : 0 = G 1/2 female, one electrical connection without blind plugs
Integral indicator : D = Digital indicator

Mounting bracket : A

Process connection style : W = Flush type

Flange rating : A1 = ANSI class 150

Process connection size (Process flange size) : 2 = 2-inch (50 mm)

Flange material : B = 304 SST

Gasket contact surface : 1 = Serration (for ANSI flange with wetted parts material SW only) Flat (no serration)

Wetted parts material : SW = [Diaphragm] = 316L SST, [Others] = 316L SST

Flushing connection ring : 0 = Ring = None, Vent/Drain plugs = -, Material = -

Extension : 0 = None

Fill fluid : A = Process temperature : For general use (silicone oil), Ambient temperature = –10 to 250°C –10 to 60°C

Capillary connection : A = Side of diaphragm seal unit

2 : Always 2

Capillary length : 7 = 7m

Weight : approx. 9.8 Kg

Shipping Weight : 11 Kg











EJA438E Standard features include:



± 0.2% Accuracy
200 ms Response Time
Exida and TUV SIL2 / SIL3 Certified
Local Parameter Setting (LPS)
10-segment Signal Characterizer
Active Capillary Fill Fluid Density Compensation









EJX110A Differential Pressure Transmitter

EJX118A Diaphragm Sealed Differential Pressure Transmitter

EJX130A Differential Pressure Transmitter

EJX120A Differential Pressure Transmitter

EJX310A Absolute Pressure Transmitter

EJX430A Gauge Pressure Transmitter

EJX440A Gauge Pressure Transmitter

EJX510A and EJX530A Absolute and Gauge Pressure Transmitter

EJX610A and EJX630A Absolute and Gauge Pressure Transmitter

EJX210A Flange Mounted Differential Pressure Transmitter

EJA110E Differential Pressure Transmitter

EJA115E Low Flow Transmitter

EJA118E Diaphragm Sealed Differential Pressure Transmitter

EJA510E and EJA530E Absolute and Gauge Pressure Transmitter

EJA120E Differential Pressure Transmitter

EJA130E Differential Pressure Transmitter

EJA210E Flange Mounted Differential Pressure Transmitter

EJA310E Absolute Pressure Transmitter

EJA430E Gauge Pressure Transmitter

EJA438E Diaphragm Sealed Gauge Pressure Transmitter

EJA438E/Z Diaphragm Sealed Gauge Pressure Transmitter (Inner Diaphragm type)

EJA440E Gauge Pressure Transmitter

EJA530E In-Line Mount Gauge Pressure Transmitter














Common Models:



EJA438E-DASCG-912DB-WJ13B2SW00-BA22
EJA438E-JBSCG-917DJ-WA22C2TW00-BA25
EJA438E-JASCG-917DJ-WA22C1SW00-BA25
EJA438E-DASCC-91DN-WA12C2TW00-AA25
EJA438E-JASCG-919EB-WD22C2SW00-AA23
EJA438E-JASCG-919DB-WD23B2SW00-BA2
EJA438E -DASCC-91DN-WA12C2TW00-AA25
EJA438E-DASCC-917DN-WA12C2TW00-AA25
EJA438E-JASCG-912NN-WD43C2SW00-AA22/D4
EJA438E-JASCG-912DN-WD43C2SW00-BA22/D4
EJA438E-DBSCG-912DB-WZ2B2HW00-AA25/D3/N4
EJA438E-JASCJ-914EB-WA22C1SW00-CA23/KU22/T53
EJA438E-FBSCG-919DB-WA12C1SW00-1A2A/X2/D3/M2W/T52
EJA438E-JBSCG-917DJ-WA22C2TW00-BA25-KU22/D4/A/M2W/T56

EJA438E-JASCG-917DJ-WA22C1SW00-BA25/KU22/D4/A/M2W/T53
