Gran internacional del sistema limitado
|
Datos del producto:
Pago y Envío Términos:
|
| Origen: | Singapur | Modelo: | 3051CG2A22A1AM5B4 |
|---|---|---|---|
| Poder: | 4-20 mA: 10.5-55 C.C. de V sin energía baja de la carga: 6-12 C.C. de V sin carga | Materiales: | El sensor mojó piezas: SST, Hastelloy, Monel, tantalio, SS plateados oro, oro plateó a Monel |
| Montaje: | Rebordes y adaptadores coplanarios y tradicionales: Cadmio y CS niquelado, 316 SST | Presión absoluta de las medidas: | hasta 4000 psia (barra 275,8). |
| Diferencial de las medidas y presión de indicador: | hasta 2000 PSI (barra 137,9) | Salida: | 4-20ma, con la señal numérica del acuerdo del CIERVO |
| Material del diafragma: | acero inoxidable 316L | ||
| Alta luz: | Indicador Emerson Rosemount Pressure Transmitter,3051CG Emerson Rosemount Pressure Transmitter,10.5V |
||

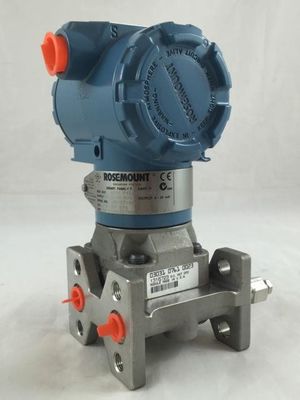

Transmisor de presión de indicador de Emerson Rosemount 3051CG 3051CG2A22A1AM5B4
Fabricante: Rosemount
Producto no: 3051CG2A22A1AM5B4
Tipo de producto: transmisor de presión coplanario 3051C
Tipo de la medida: G = indicador
Gama de presión: 2 = – 250 a 250 inH2O (– 621,60 a 621,60 mbar)
Salida del transmisor: Un = 4-20 mA con la señal numérica basada en protocolo de HART®
Materiales de la construcción: 2 = tipo de proceso coplanario del reborde, material del reborde de SST, dren de SST/respiradero
Aislamiento del diafragma: 2 = 316L SST
Anillo o: = PTFE Vidrio-llenado
Líquido del terraplén del sensor: 1 = silicón
Vivienda del material: B = aluminio, tamaño de la entrada de conducto 1,5 de M20 x
Consola de montaje: B4 = soporte coplanario del reborde, todo SST, 2 adentro. tubo y el panel
Opciones de la exhibición y de interfaz: M5 = exhibición del LCD
Adaptadores del reborde: DF = ½ – 14 adaptadores del reborde del NPT
Peso: 3 kilogramos
Peso del envío: 4 kilogramos
· Seguridad certificada a IEC 61508
· Opción de la presión estática hasta 6.092 PSI (barra 420)
· Alarmas de proceso de la presión y de la temperatura del sensor
· Valores configurables de la alarma y de la saturación del usuario
· Atajo ajustable del flujo bajo
Transmisor de presión diferenciada 3051CD
Transmisor de presión de indicador 3051CG
Transmisor de la presión absoluta 3051CA
| Gama de presión | ||||||
| Roemount 3051CD | Rosemount 3051CG | Rosemount 3051CA | ||||
| 0 | -3----3inH2O/0.1inH2O | No presente | No presente | |||
| 1 | -25---25inH2O/0.5inH2O | -25-25inH2O/0.5inH2O | 0-30psia/0.3psia | |||
| 2 | -250-250inH2O/2.5inH2O | -250-250inH2O/2.5inH2O | 0-150psia/1.5psia | |||
| 3 | -1000-1000inH2O/10inH2O | -407-1000inH2O/10inH2O | 0-800psia/8psia | |||
| 4 | -300-300psi/3psi | -14.7-300psi/3psi | 0-4000psia/40psia | |||
| 5 | -2000-2000psi/20psi | -14.7-2000psi/20psi | No presente | |||
| Salida | ||||||
| 4-20ma, con la señal numérica del acuerdo del CIERVO | ||||||
| M | 1-5Vdc, con la señal numérica del acuerdo del CIERVO | |||||
| F | Fieldbus del FF | |||||
| W | profibus | |||||
| Material de las piezas de la estructura | ||||||
| Tipo de proceso del reborde | Material del reborde | Válvula de escape líquido/de gas | Material de la junta de reborde | |||
| 5 | coplane | Electrochape el acero de carbono | Acero inoxidable | Electrochape el acero de carbono | ||
| 2 | Coplane | Acero inoxidable | Acero inoxidable | Acero inoxidable | ||
| 3 | coplane | Hastelloy C | Hastelloy C | Hastelloy C | ||
| 4 | Coplane | Monel | Monel | Monel | ||
| 8 | coplane | Electrochape el acero de carbono | Hastelloy C | Electrochape el acero de carbono | ||
| 7 | coplane | Acero inoxidable | Hastelloy C | Acero inoxidable | ||
| 0 | Substituya el reborde | |||||
| Material del diafragma | ||||||
| 2 | acero inoxidable 316L | |||||
| 3 | Hastelloy C | |||||
| 4 | Monel | |||||
| 5 | Tantalio | |||||
| 6 | El oro plateó el monel | |||||
| 7 | El oro plateó el acero inoxidable | |||||
| 3051CG1A02A1AB1H2L4M5, | 3051CD0A02A1AB3H2L4M5E5, |
| 3051CG2A02A1AB1H2L4M5, | 3051CD1A02A1AB3H2L4M5E5, |
| 3051CG3A02A1AB1H2L4M5, | 3051CD2A02A1AB3H2L4M5E5, |
| 3051CG4A02A1AB1H2L4M5, | 3051CD3A02A1AB3H2L4M5E5, |
| 3051CG5A02A1AB1H2L4M5, | 3051CD4A02A1AB3H2L4M5E5, |
| 051CG1A02A1AB3H2L4M5, | 3051CD5A02A1AB3H2L4M5E5, |
| 3051CG2A02A1AB3H2L4M5, | 3051CD0A02A1AB3H2L4M5I5, |
| 3051CG3A02A1AB3H2L4M5, | 3051CD1A02A1AB3H2L4M5I5, |
| 3051CG4A02A1AB3H2L4M5, | 3051CD2A02A1AB3H2L4M5I5, |
| 3051CG5A02A1AB3H2L4M5, | 3051CD3A02A1AB3H2L4M5I5, |
| 3051CG1A02A1AB1H2L4M5K5, | 3051CD4A02A1AB3H2L4M5I5, |
| 3051CG2A02A1AB1H2L4M5K5, | 3051CD5A02A1AB3H2L4M5I5, |
| 3051CG3A02A1AB1H2L4M5K5 | 3051CD1A22A1AB4M5, |
| 3051CG4A02A1AB1H2L4M5K5, | 3051CD2A22A1AB4M5, |
| 3051CG5A02A1AB1H2L4M5K5 | 3051CD3A22A1AB4M5, |
| 3051CG1A02A1AB1H2L4M5E5, | 3051CD4A22A1AB4M5, |
| 3051CG2A02A1AB1H2L4M5E5, | 3051CD5A22A1AB4M5, |
| 3051CG3A02A1AB1H2L4M5E5, | 3051CD1A22A1AB4M5DF, |
| 3051CG4A02A1AB1H2L4M5E5, | 3051CD2A22A1AB4M5DF, |
| 3051CG5A02A1AB1H2L4M5E5, | 3051CD3A22A1AB4M5DF, |
| 3051CG1A02A1AB1H2L4M5I5, | 3051CD4A22A1AB4M5DF, |
| 3051CG2A02A1AB1H2L4M5I5, | 3051CD5A22A1AB4M5DF, |
| 3051CG3A02A1AB1H2L4M5I5, | 3051CD1A22A1AB4M5K5, |
| 3051CG4A02A1AB1H2L4M5I5, | 3051CD2A22A1AB4M5K5, |
| 3051CG5A02A1AB1H2L4M5I5, | 3051CD3A22A1AB4M5K5, |
| 3051CG1A02A1AB3H2L4M5K5, | 3051CD4A22A1AB4M5K5, |
| 3051CG2A02A1AB3H2L4M5K5, | 3051CD5A22A1AB4M5K5, |
| 3051CG3A02A1AB3H2L4M5K5, | 3051CD1A22A1AB4M5E5, |
| 3051CG4A02A1AB3H2L4M5K5, | 3051CD2A22A1AB4M5E5, |
| 3051CG5A02A1AB3H2L4M5K5, | 3051CD3A22A1AB4M5E5, |
| 3051CG1A02A1AB3H2L4M5E5, | 3051CD4A22A1AB4M5E5, |
| 3051CG2A02A1AB3H2L4M5E5, | 3051CD5A22A1AB4M5E5, |
| 3051CG3A02A1AB3H2L4M5E5, | 3051CD1A22A1AB4M5I5, |
| 3051CG4A02A1AB3H2L4M5E5, | 3051CD2A22A1AB4M5I5, |
| 3051CG5A02A1AB3H2L4M5E5, | 3051CD3A22A1AB4M5I5, |
| 3051CG1A02A1AB3H2L4M5I5, | 3051CD4A22A1AB4M5I5, |
| 3051CG2A02A1AB3H2L4M5I5, | 3051CD5A22A1AB4M5I5, |
| 3051CG3A02A1AB3H2L4M5I5, | 3051CA1A02A1AB1H2L4M5, |
| 3051CG4A02A1AB3H2L4M5I5, | 3051CA2A02A1AB1H2L4M5, |
| 3051CG5A02A1AB3H2L4M5I5, | 3051CA3A02A1AB1H2L4M5, |
| 3051CG1A22A1AB4M5, | 3051CA4A02A1AB1H2L4M5, |
| 3051CG2A22A1AB4M5, | 3051CA5A02A1AB1H2L4M5, |
| 3051CG3A22A1AB4M5, | 3051CA1A02A1AB3H2L4M5, |
| 3051CG4A22A1AB4M5, | 3051CA2A02A1AB3H2L4M5, |
| 3051CG5A22A1AB4M5, | 3051CA3A02A1AB3H2L4M5, |
| 3051CG1A22A1AB4M5DF, | 3051CA4A02A1AB3H2L4M5, |
| 3051CG2A22A1AB4M5DF, | 3051CA5A02A1AB3H2L4M5, |
| 3051CG3A22A1AB4M5DF, | 3051CA1A02A1AB1H2L4M5K5, |
| 3051CG4A22A1AB4M5DF, | 3051CA2A02A1AB1H2L4M5K5, |
| 3051CG5A22A1AB4M5DF | 3051CA3A02A1AB1H2L4M5K5, |
| 3051CG1A22A1AB4M5K5, | 3051CA4A02A1AB1H2L4M5K5, |
| 3051CG2A22A1AB4M5K5, | 3051CA5A02A1AB1H2L4M5K5, |
| 3051CG3A22A1AB4M5K5 | 3051CA1A02A1AB1H2L4M5E5, |
| 3051CG4A22A1AB4M5K5, | 3051CA2A02A1AB1H2L4M5E5, |
| 3051CG5A22A1AB4M5K5, | 3051CA3A02A1AB1H2L4M5E5, |
| 3051CG1A22A1AB4M5E5 | 3051CA4A02A1AB1H2L4M5E5, |
| 3051CG2A22A1AB4M5E5, | 3051CA5A02A1AB1H2L4M5E5, |
| 3051CG3A22A1AB4M5E5, | 3051CA1A02A1AB1H2L4M5I5, |
| 3051CG4A22A1AB4M5E5 | 3051CA2A02A1AB1H2L4M5I5, |
| 3051CG5A22A1AB4M5E5, | 3051CA3A02A1AB1H2L4M5I5, |
| 3051CG1A22A1AB4M5I5, | 3051CA4A02A1AB1H2L4M5I5, |
| 3051CG2A22A1AB4M5I5 | 3051CA5A02A1AB1H2L4M5I5, |
| 3051CG3A22A1AB4M5I5, | 3051CA1A02A1AB3H2L4M5K5, |
| 3051CG4A22A1AB4M5I5, | 3051CA2A02A1AB3H2L4M5K5, |
| 3051CG5A22A1AB4M5I5 | 3051CA3A02A1AB3H2L4M5K5, |
| 3051CD0A02A1AB1H2L4M5, | 3051CA4A02A1AB3H2L4M5K5, |
| 3051CD1A02A1AB1H2L4M5, | 3051CA5A02A1AB3H2L4M5K5, |
| 3051CD2A02A1AB1H2L4M5 | 3051CA1A02A1AB3H2L4M5E5, |
| 3051CD3A02A1AB1H2L4M5, | 3051CA2A02A1AB3H2L4M5E5, |
| 3051CD4A02A1AB1H2L4M5, | 3051CA3A02A1AB3H2L4M5E5, |
| 3051CD5A02A1AB1H2L4M5 | 3051CA4A02A1AB3H2L4M5E5, |
| 3051CD0A02A1AB3H2L4M5, | 3051CA5A02A1AB3H2L4M5E5, |
| 3051CD1A02A1AB3H2L4M5, | 3051CA1A02A1AB3H2L4M5I5, |
| 3051CD2A02A1AB3H2L4M5 | 3051CA2A02A1AB3H2L4M5I5, |
| 3051CD3A02A1AB3H2L4M5, | 3051CA3A02A1AB3H2L4M5I5, |
| 3051CD4A02A1AB3H2L4M5, | 3051CA4A02A1AB3H2L4M5I5, |
| 3051CD5A02A1AB3H2L4M5 | 3051CA5A02A1AB3H2L4M5I5, |
| 3051CD0A02A1AB1H2L4M5K5, | 3051CA1A22A1AB4M5, |
| 3051CD1A02A1AB1H2L4M5K5, | 3051CA2A22A1AB4M5, |
| 3051CD2A02A1AB1H2L4M5K5, | 3051CA3A22A1AB4M5, |
| 3051CD3A02A1AB1H2L4M5K5, | 3051CA4A22A1AB4M5, |
| 3051CD4A02A1AB1H2L4M5K5, | 3051CA5A22A1AB4M5, |
| 3051CD5A02A1AB1H2L4M5K5, | 3051CA1A22A1AB4M5DF, |
| 3051CD0A02A1AB1H2L4M5E5, | 3051CA2A22A1AB4M5DF, |
| 3051CD1A02A1AB1H2L4M5E5, | 3051CA3A22A1AB4M5DF, |
| 3051CD2A02A1AB1H2L4M5E5, | 3051CA4A22A1AB4M5DF, |
| 3051CD3A02A1AB1H2L4M5E5, | 3051CA5A22A1AB4M5DF, |
| 3051CD4A02A1AB1H2L4M5E5, | 3051CA1A22A1AB4M5K5, |
| 3051CD5A02A1AB1H2L4M5E5, | 3051CA2A22A1AB4M5K5, |
| 3051CD0A02A1AB1H2L4M5I5, | 3051CA3A22A1AB4M5K5, |
| 3051CD1A02A1AB1H2L4M5I5, | 3051CA4A22A1AB4M5K5, |
| 3051CD2A02A1AB1H2L4M5I5, | 3051CA5A22A1AB4M5K5, |
| 3051CD3A02A1AB1H2L4M5I5, | 3051CA1A22A1AB4M5E5, |
| 3051CD4A02A1AB1H2L4M5I5, | 3051CA2A22A1AB4M5E5, |
| 3051CD5A02A1AB1H2L4M5I5, | 3051CA3A22A1AB4M5E5, |
| 3051CD0A02A1AB3H2L4M5K5, | 3051CA4A22A1AB4M5E5, |
| 3051CD1A02A1AB3H2L4M5K5, | 3051CA5A22A1AB4M5E5, |
| 3051CD2A02A1AB3H2L4M5K5, | 3051CA1A22A1AB4M5I5, |
| 3051CD3A02A1AB3H2L4M5K5, | 3051CA2A22A1AB4M5I5, |
| 3051CD4A02A1AB3H2L4M5K5, | 3051CA3A22A1AB4M5I5, |
| 3051CD5A02A1AB3H2L4M5K5, | 3051CA4A22A1AB4M5I5, |
