Gran internacional del sistema limitado
|
Datos del producto:
Pago y Envío Términos:
|
| Origen: | Singapur | Modelo: | 3051CG1A22A1AM5Q4 |
|---|---|---|---|
| Poder: | 4-20 mA: 10.5-55 C.C. de V sin energía baja de la carga: 6-12 C.C. de V sin carga | Materiales: | El sensor mojó piezas: SST, Hastelloy, Monel, tantalio, SS plateados oro, oro plateó a Monel |
| Montaje: | Rebordes y adaptadores coplanarios y tradicionales: Cadmio y CS niquelado, 316 SST | Presión absoluta de las medidas: | hasta 4000 psia (barra 275,8). |
| Diferencial de las medidas y presión de indicador: | hasta 2000 PSI (barra 137,9) | Salida: | 4-20ma, con la señal numérica del acuerdo del CIERVO |
| Material del diafragma: | acero inoxidable 316L | ||
| Alta luz: | 10.5V Emerson Rosemount Pressure Transmitter,4ma Emerson Rosemount Pressure Transmitter,Transmisor de presión de indicador 3051CG |
||

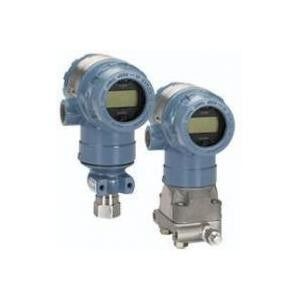

Transmisor de presión de indicador de Emerson Rosemount 3051CG 3051CG1A22A1AM5Q4
Descripción:
Fabricante: Rosemount
3051CG1A22A1AM5Q4
transmisor de presión 3051C-Coplanar
Tipo de la G-medida: Indicador
1-Pressure se extiende (gama/Min. Span): – 25 a 25 inH2O/0.5 inH2O
(– 62,1 a 62,2 mbar/1,2
mbar)
Salida del Uno-transmisor: -4-20 mA con la señal numérica basada en protocolo de HART®
diafragma 2-Isolating: 316L SST
A - Anillo o (estándar): PTFE Vidrio-llenado
1- Líquido del terraplén del sensor: Silicón
A - Vivienda del material: aluminio Poliuretano-cubierto
Tamaño de la entrada de conducto: ½ – 14 NPT
M5 - Tipo de exhibición: Exhibición del LCD para la vivienda de aluminio
Añada los pesos libra (kilogramo) del transmisor: 0,5 (0,2)
Pesos del transmisor 3051C sin las opciones libra (kilogramo): 6,0 (2,7)
peso total: 4 kilogramos
Peso del envío: 6 kilogramos
Información adicional:
Las opciones de salida disponibles para el transmisor de presión elegante de Rosemount 3051C incluyen 4-20mA o 1-5VDC con protocolo del CIERVO, Profibus, o fieldbus de la FUNDACIÓN. El transmisor de presión elegante de Rosemount 3051C ofrece tan muchas opciones que puede ser configurado para cualquier uso.
Características
Seguridad certificada a IEC 61508
Opción de la presión estática hasta 6.092 PSI (barra 420)
Alarmas de proceso de la presión y de la temperatura del sensor
Valores configurables de la alarma y de la saturación del usuario
Atajo ajustable del flujo bajo
Especificaciones del transmisor de presión de indicador de Rosemount 3051CG
Transmisor de presión diferenciada 3051CD
Transmisor de presión de indicador 3051CG
Transmisor de la presión absoluta 3051CA
Especificación:
| Gama de presión | ||||||
| Roemount 3051CD | Rosemount 3051CG | Rosemount 3051CA | ||||
| 0 | -3----3inH2O/0.1inH2O | No presente | No presente | |||
| 1 | -25---25inH2O/0.5inH2O | -25-25inH2O/0.5inH2O | 0-30psia/0.3psia | |||
| 2 | -250-250inH2O/2.5inH2O | -250-250inH2O/2.5inH2O | 0-150psia/1.5psia | |||
| 3 | -1000-1000inH2O/10inH2O | -407-1000inH2O/10inH2O | 0-800psia/8psia | |||
| 4 | -300-300psi/3psi | -14.7-300psi/3psi | 0-4000psia/40psia | |||
| 5 | -2000-2000psi/20psi | -14.7-2000psi/20psi | No presente | |||
| Salida | ||||||
| 4-20ma, con la señal numérica del acuerdo del CIERVO | ||||||
| M | 1-5Vdc, con la señal numérica del acuerdo del CIERVO | |||||
| F | Fieldbus del FF | |||||
| W | profibus | |||||
| Material de las piezas de la estructura | ||||||
| Tipo de proceso del reborde | Material del reborde | Válvula de escape líquido/de gas | Material de la junta de reborde | |||
| 5 | coplane | Electrochape el acero de carbono | Acero inoxidable | Electrochape el acero de carbono | ||
| 2 | Coplane | Acero inoxidable | Acero inoxidable | Acero inoxidable | ||
| 3 | coplane | Hastelloy C | Hastelloy C | Hastelloy C | ||
| 4 | Coplane | Monel | Monel | Monel | ||
| 8 | coplane | Electrochape el acero de carbono | Hastelloy C | Electrochape el acero de carbono | ||
| 7 | coplane | Acero inoxidable | Hastelloy C | Acero inoxidable | ||
| 0 | Substituya el reborde | |||||
| Material del diafragma | ||||||
| 2 | acero inoxidable 316L | |||||
| 3 | Hastelloy C | |||||
| 4 | Monel | |||||
| 5 | Tantalio | |||||
| 6 | El oro plateó el monel | |||||
| 7 | El oro plateó el acero inoxidable | |||||
Modelos comunes:
| 3051CG1A02A1AB1H2L4M5, | 3051CD0A02A1AB3H2L4M5E5, |
| 3051CG2A02A1AB1H2L4M5, | 3051CD1A02A1AB3H2L4M5E5, |
| 3051CG3A02A1AB1H2L4M5, | 3051CD2A02A1AB3H2L4M5E5, |
| 3051CG4A02A1AB1H2L4M5, | 3051CD3A02A1AB3H2L4M5E5, |
| 3051CG5A02A1AB1H2L4M5, | 3051CD4A02A1AB3H2L4M5E5, |
| 051CG1A02A1AB3H2L4M5, | 3051CD5A02A1AB3H2L4M5E5, |
| 3051CG2A02A1AB3H2L4M5, | 3051CD0A02A1AB3H2L4M5I5, |
| 3051CG3A02A1AB3H2L4M5, | 3051CD1A02A1AB3H2L4M5I5, |
| 3051CG4A02A1AB3H2L4M5, | 3051CD2A02A1AB3H2L4M5I5, |
| 3051CG5A02A1AB3H2L4M5, | 3051CD3A02A1AB3H2L4M5I5, |
| 3051CG1A02A1AB1H2L4M5K5, | 3051CD4A02A1AB3H2L4M5I5, |
| 3051CG2A02A1AB1H2L4M5K5, | 3051CD5A02A1AB3H2L4M5I5, |
| 3051CG3A02A1AB1H2L4M5K5 | 3051CD1A22A1AB4M5, |
| 3051CG4A02A1AB1H2L4M5K5, | 3051CD2A22A1AB4M5, |
| 3051CG5A02A1AB1H2L4M5K5 | 3051CD3A22A1AB4M5, |
| 3051CG1A02A1AB1H2L4M5E5, | 3051CD4A22A1AB4M5, |
| 3051CG2A02A1AB1H2L4M5E5, | 3051CD5A22A1AB4M5, |
| 3051CG3A02A1AB1H2L4M5E5, | 3051CD1A22A1AB4M5DF, |
| 3051CG4A02A1AB1H2L4M5E5, | 3051CD2A22A1AB4M5DF, |
| 3051CG5A02A1AB1H2L4M5E5, | 3051CD3A22A1AB4M5DF, |
| 3051CG1A02A1AB1H2L4M5I5, | 3051CD4A22A1AB4M5DF, |
| 3051CG2A02A1AB1H2L4M5I5, | 3051CD5A22A1AB4M5DF, |
| 3051CG3A02A1AB1H2L4M5I5, | 3051CD1A22A1AB4M5K5, |
| 3051CG4A02A1AB1H2L4M5I5, | 3051CD2A22A1AB4M5K5, |
| 3051CG5A02A1AB1H2L4M5I5, | 3051CD3A22A1AB4M5K5, |
| 3051CG1A02A1AB3H2L4M5K5, | 3051CD4A22A1AB4M5K5, |
| 3051CG2A02A1AB3H2L4M5K5, | 3051CD5A22A1AB4M5K5, |
| 3051CG3A02A1AB3H2L4M5K5, | 3051CD1A22A1AB4M5E5, |
| 3051CG4A02A1AB3H2L4M5K5, | 3051CD2A22A1AB4M5E5, |
| 3051CG5A02A1AB3H2L4M5K5, | 3051CD3A22A1AB4M5E5, |
| 3051CG1A02A1AB3H2L4M5E5, | 3051CD4A22A1AB4M5E5, |
| 3051CG2A02A1AB3H2L4M5E5, | 3051CD5A22A1AB4M5E5, |
| 3051CG3A02A1AB3H2L4M5E5, | 3051CD1A22A1AB4M5I5, |
| 3051CG4A02A1AB3H2L4M5E5, | 3051CD2A22A1AB4M5I5, |
| 3051CG5A02A1AB3H2L4M5E5, | 3051CD3A22A1AB4M5I5, |
| 3051CG1A02A1AB3H2L4M5I5, | 3051CD4A22A1AB4M5I5, |
| 3051CG2A02A1AB3H2L4M5I5, | 3051CD5A22A1AB4M5I5, |
| 3051CG3A02A1AB3H2L4M5I5, | 3051CA1A02A1AB1H2L4M5, |
| 3051CG4A02A1AB3H2L4M5I5, | 3051CA2A02A1AB1H2L4M5, |
| 3051CG5A02A1AB3H2L4M5I5, | 3051CA3A02A1AB1H2L4M5, |
| 3051CG1A22A1AB4M5, | 3051CA4A02A1AB1H2L4M5, |
| 3051CG2A22A1AB4M5, | 3051CA5A02A1AB1H2L4M5, |
| 3051CG3A22A1AB4M5, | 3051CA1A02A1AB3H2L4M5, |
| 3051CG4A22A1AB4M5, | 3051CA2A02A1AB3H2L4M5, |
| 3051CG5A22A1AB4M5, | 3051CA3A02A1AB3H2L4M5, |
| 3051CG1A22A1AB4M5DF, | 3051CA4A02A1AB3H2L4M5, |
| 3051CG2A22A1AB4M5DF, | 3051CA5A02A1AB3H2L4M5, |
| 3051CG3A22A1AB4M5DF, | 3051CA1A02A1AB1H2L4M5K5, |
| 3051CG4A22A1AB4M5DF, | 3051CA2A02A1AB1H2L4M5K5, |
| 3051CG5A22A1AB4M5DF | 3051CA3A02A1AB1H2L4M5K5, |
| 3051CG1A22A1AB4M5K5, | 3051CA4A02A1AB1H2L4M5K5, |
| 3051CG2A22A1AB4M5K5, | 3051CA5A02A1AB1H2L4M5K5, |
| 3051CG3A22A1AB4M5K5 | 3051CA1A02A1AB1H2L4M5E5, |
| 3051CG4A22A1AB4M5K5, | 3051CA2A02A1AB1H2L4M5E5, |
| 3051CG5A22A1AB4M5K5, | 3051CA3A02A1AB1H2L4M5E5, |
| 3051CG1A22A1AB4M5E5 | 3051CA4A02A1AB1H2L4M5E5, |
| 3051CG2A22A1AB4M5E5, | 3051CA5A02A1AB1H2L4M5E5, |
| 3051CG3A22A1AB4M5E5, | 3051CA1A02A1AB1H2L4M5I5, |
| 3051CG4A22A1AB4M5E5 | 3051CA2A02A1AB1H2L4M5I5, |
| 3051CG5A22A1AB4M5E5, | 3051CA3A02A1AB1H2L4M5I5, |
| 3051CG1A22A1AB4M5I5, | 3051CA4A02A1AB1H2L4M5I5, |
| 3051CG2A22A1AB4M5I5 | 3051CA5A02A1AB1H2L4M5I5, |
| 3051CG3A22A1AB4M5I5, | 3051CA1A02A1AB3H2L4M5K5, |
| 3051CG4A22A1AB4M5I5, | 3051CA2A02A1AB3H2L4M5K5, |
| 3051CG5A22A1AB4M5I5 | 3051CA3A02A1AB3H2L4M5K5, |
| 3051CD0A02A1AB1H2L4M5, | 3051CA4A02A1AB3H2L4M5K5, |
| 3051CD1A02A1AB1H2L4M5, | 3051CA5A02A1AB3H2L4M5K5, |
| 3051CD2A02A1AB1H2L4M5 | 3051CA1A02A1AB3H2L4M5E5, |
| 3051CD3A02A1AB1H2L4M5, | 3051CA2A02A1AB3H2L4M5E5, |
| 3051CD4A02A1AB1H2L4M5, | 3051CA3A02A1AB3H2L4M5E5, |
| 3051CD5A02A1AB1H2L4M5 | 3051CA4A02A1AB3H2L4M5E5, |
| 3051CD0A02A1AB3H2L4M5, | 3051CA5A02A1AB3H2L4M5E5, |
| 3051CD1A02A1AB3H2L4M5, | 3051CA1A02A1AB3H2L4M5I5, |
| 3051CD2A02A1AB3H2L4M5 | 3051CA2A02A1AB3H2L4M5I5, |
| 3051CD3A02A1AB3H2L4M5, | 3051CA3A02A1AB3H2L4M5I5, |
| 3051CD4A02A1AB3H2L4M5, | 3051CA4A02A1AB3H2L4M5I5, |
| 3051CD5A02A1AB3H2L4M5 | 3051CA5A02A1AB3H2L4M5I5, |
| 3051CD0A02A1AB1H2L4M5K5, | 3051CA1A22A1AB4M5, |
| 3051CD1A02A1AB1H2L4M5K5, | 3051CA2A22A1AB4M5, |
| 3051CD2A02A1AB1H2L4M5K5, | 3051CA3A22A1AB4M5, |
| 3051CD3A02A1AB1H2L4M5K5, | 3051CA4A22A1AB4M5, |
| 3051CD4A02A1AB1H2L4M5K5, | 3051CA5A22A1AB4M5, |
| 3051CD5A02A1AB1H2L4M5K5, | 3051CA1A22A1AB4M5DF, |
| 3051CD0A02A1AB1H2L4M5E5, | 3051CA2A22A1AB4M5DF, |
| 3051CD1A02A1AB1H2L4M5E5, | 3051CA3A22A1AB4M5DF, |
| 3051CD2A02A1AB1H2L4M5E5, | 3051CA4A22A1AB4M5DF, |
| 3051CD3A02A1AB1H2L4M5E5, | 3051CA5A22A1AB4M5DF, |
| 3051CD4A02A1AB1H2L4M5E5, | 3051CA1A22A1AB4M5K5, |
| 3051CD5A02A1AB1H2L4M5E5, | 3051CA2A22A1AB4M5K5, |
| 3051CD0A02A1AB1H2L4M5I5, | 3051CA3A22A1AB4M5K5, |
| 3051CD1A02A1AB1H2L4M5I5, | 3051CA4A22A1AB4M5K5, |
| 3051CD2A02A1AB1H2L4M5I5, | 3051CA5A22A1AB4M5K5, |
| 3051CD3A02A1AB1H2L4M5I5, | 3051CA1A22A1AB4M5E5, |
| 3051CD4A02A1AB1H2L4M5I5, | 3051CA2A22A1AB4M5E5, |
| 3051CD5A02A1AB1H2L4M5I5, | 3051CA3A22A1AB4M5E5, |
| 3051CD0A02A1AB3H2L4M5K5, | 3051CA4A22A1AB4M5E5, |
| 3051CD1A02A1AB3H2L4M5K5, | 3051CA5A22A1AB4M5E5, |
| 3051CD2A02A1AB3H2L4M5K5, | 3051CA1A22A1AB4M5I5, |
| 3051CD3A02A1AB3H2L4M5K5, | 3051CA2A22A1AB4M5I5, |
| 3051CD4A02A1AB3H2L4M5K5, | 3051CA3A22A1AB4M5I5, |
| 3051CD5A02A1AB3H2L4M5K5, | 3051CA4A22A1AB4M5I5, |
