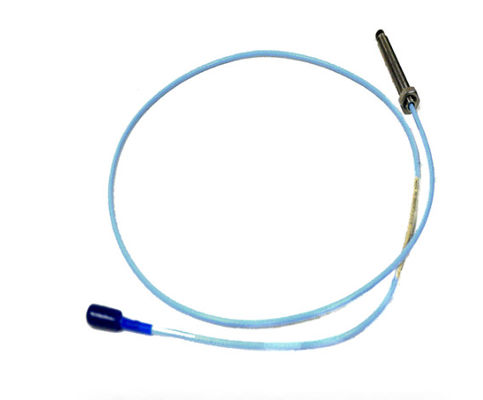

Bently Nevada 330101-00-24-10-02-CN 3300 XL 8 mm Proximity Probes

Bently Nevada 330101-00-24-10-02-CN 3300 XL 8 mm Proximity Probes
Bently Nevada 330101-00-24-10-02-CN 3300 XL 8 mm Proximity Probes

Ampliación de imagen :  Bently Nevada 330101-00-24-10-02-CN 3300 XL 8 mm Proximity Probes

Datos del producto:
Lugar de origen: LOS E.E.U.U.
Nombre de la marca: BENTLY NEVADA
Certificación: ROHS
Número de modelo: 330101-00-24-10-02-CN
Pago y Envío Términos:
Cantidad de orden mínima: 1
Precio: Negotiable
Detalles de empaquetado: Cartón
Tiempo de entrega: a petición
Condiciones de pago: T/T
Capacidad de la fuente: acción 100+pc+on
Descripción detallada del producto
Fabricación: Doblado Nevada número de parte: 330101-00-24-10-02-CN
Tipo modelo: 3300 XL puntas de prueba de la proximidad de 8 milímetros Longitud descosida: 0 milímetros
Longitud total del caso: 240 milímetros Longitud total: 1,0 metros (3,3 pies)
Tipo del conector y de cable: ClickLoc coaxial miniatura, conector, cable estándar Aprobación de la agencia: No requerido
Peso del envío: 2.0kg

Bently Nevada 330101-00-24-10-02-CN 3300 8mmXL Proximity Probes

The 3300 XL Proximitor® Sensor incorporates numerous improvements over
previous designs. Its physical packaging permits high-density DIN-rail installation.
It can also be mounted in a traditional panel mount configuration, where it shares an
identical “footprint” to older 4-hole mounted Proximitor® Sensor designs. The
mounting base for either option provides electrical isolation, eliminating the need for
separate isolator plates. The 3300 XL Proximitor® Sensor is highly immune to
radio frequency interference, allowing installation in fiberglass housings without
adverse effects from nearby radio frequency signals. Improved RFI/EMI immunity
allows the 3300 XL Proximitor® Sensor to achieve European CE mark approvals
without requiring special shielded conduit or metallic housings, resulting in lower
installation costs and complexity.



Part Number: 330101-00-24-10-02-CN


Ordering Information
Model: 330101 - 3300 XL 8 mm Proximity Probes
Unthreaded Length Option: 00 - 0 mm
Overall Case Length Option: 24 - 240 mm
Total Length Option: 10 - 1.0 metre (3.3 feet)
Connector and Cable Type Option: 02 - Miniature coaxial ClickLoc, connector, standard cable
Agency Approval Option: CN - Not required



Product’s Character:

The use of the product:

1. Oil and Gas;

2. Petrochemical;

3. Municipal Engineering.





Related Product Recommendation:



330101-00-08-05-02-00 330101-00-35-10-02-00
330101-00-08-05-02-CN 330101-00-36-10-01-00
330101-00-08-10-01-00 330101-00-36-10-02-00
330101-00-08-10-02-00 330101-00-36-10-02-CN
330101-00-08-10-02-CN 330101-00-36-15-02-CN
330101-00-08-15-01-00 330101-00-37-05-02-00
330101-00-08-15-02-CN 330101-00-38-10-02-00
330101-00-08-20-02-CN 330101-00-40-05-02-00
330101-00-08-20-12-CN 330101-00-40-05-02-CN
330101-00-08-50-02-00 330101-00-40-10-01-CN
330101-00-09-10-02-CN 330101-00-40-10-02-00
330101-00-09-15-02-CN 330101-00-40-10-02-CN
330101-00-09-20-02-CN 330101-00-43-10-02-CN
330101-00-10-05-02-00 330101-00-43-20-02-CN
330101-00-10-10-02-00 330101-00-44-10-02-00
330101-00-10-10-02-CN 330101-00-45-15-02-CN
330101-00-10-10-12-CN 330101-00-48-10-02-00
330101-00-10-15-02-CN 330101-00-48-20-02-CN
330101-00-12-05-02-00 330101-00-50-05-02-CN
330101-00-12-10-01-00 330101-00-50-10-02-00
330101-00-12-10-01-CN 330101-00-52-10-02-CN
330101-00-12-10-02-00 330101-00-52-10-12-CN
330101-00-12-10-02-CN 330101-00-52-15-02-CN
330101-00-12-10-12-00 330101-00-53-10-02-00
330101-00-12-15-02-CN 330101-00-59-10-02-CN
330101-00-13-10-02-00 330101-00-60-05-02-00
330101-00-13-10-02-CN 330101-00-60-10-01-00
330101-00-14-10-02-00 330101-00-60-10-02-00
330101-00-14-10-02-CN 330101-00-61-15-02-CN
330101-00-15-10-01-00 330101-00-70-05-02-00
330101-00-15-10-02-00 330101-00-70-05-02-CN
330101-00-15-10-02-CN 330101-00-75-10-02-00
330101-00-15-15-02-CN 330101-00-76-05-02-00
330101-00-15-20-02-CN 330101-00-77-15-02-CN
330101-00-16-05-01-00 330101-00-79-20-02-CN
330101-00-16-10-02-00 330101-00-81-10-02-00
330101-00-16-10-02-CN 330101-00-86-10-02-00
330101-00-18-10-02-00 330101-00-96-05-02-CN
330101-00-18-10-02-CN 330101-00-96-10-02-CN
330101-00-18-15-02-CN 330101-02-12-05-01-CN
330101-00-19-10-02-00 330101-02-12-05-02-00
330101-00-20-05-01-00 330101-02-12-15-01-CN
330101-00-20-05-02-00 330101-02-12-15-02-00
330101-00-20-10-02-00 330101-02-12-20-01-00
330101-00-20-10-02-CN 330101-02-12-20-01-CN
330101-00-20-10-12-CN 330101-02-12-20-02-00
330101-00-20-15-01-00 330101-02-12-50-01-00
330101-00-20-20-02-CN 330101-02-12-50-01-CN
330101-00-21-10-02-00 330101-05-25-10-02-00
330101-00-22-10-02-CN 330101-05-30-05-02-00
330101-00-23-90-02-CN 330101-05-30-10-02-00
330101-00-24-05-01-00 330101-10-35-10-02-CN
330101-00-24-05-02-00 330101-10-45-10-02-CN
330101-00-24-05-02-CN 330101-12-40-10-02-CN
330101-00-24-10-02-00 330101-12-60-10-02-CN
330101-00-24-10-02-CN 330101-14-22-10-02-00
330101-00-25-10-02-CN 330101-15-48-10-02-CN
330101-00-27-50-02-CN 330101-16-26-10-02-CN
330101-00-28-10-02-00 330101-20-60-10-02-00
330101-00-28-10-02-CN 330101-23-37-10-02-00
330101-00-28-10-12-CN 330101-24-40-10-02-00
330101-00-28-15-02-CN 330101-25-44-10-02-00
330101-00-28-90-02-00 330101-28-68-05-02-00
330101-00-30-05-02-00 330101-29-52-05-02-00
330101-00-30-10-02-00 330101-30-39-10-02-CN
330101-00-30-10-02-CN 330101-30-39-15-02-CN
330101-00-31-10-02-00 330101-30-59-10-02-CN
330101-00-32-05-02-00 330101-35-56-05-02-00
330101-00-32-10-02-00 330101-36-56-05-02-00
330101-00-33-10-02-CN 330101-41-72-05-02-00
330101-00-34-15-02-CN 330101-43-63-90-02-00



Our Advantage:

Best possible prices and delivery time

Long time experience in the field

Well trained staff

Own warehouse facilities

Best relationships with branch office of manufacture

Flexible and individual service for you

Cheap and safe forwarder for shipments (air)





Frequently Asked Questions:



1. Q: Does your goods are new and original?

A: Yes, they are new and original.



  • Q: How long warranty?

A:One-year warranty.



  • Q: Does any certificates can be provided?

A: Yes, it depends on what product you request, please check details with our sales.
