Gran internacional del sistema limitado
|
Datos del producto:
Pago y Envío Términos:
|
| Modelo: | EJA438E-JASCG-917DJ-WA22C1SW00-BA25/KU22/D4/A/M2W/T53 | Embalaje: | Cartón estándar de Yokogawa |
|---|---|---|---|
| Nombre de producto: | Transmisor de presión de indicador con el sello remoto del diafragma | Tiempo de respuesta: | 200 ms tiempo de respuesta |
| Peso del envío: | 15kg | Exactitud: | exactitud del ± 0,2% |
| Capilar: | Remuneración flúida de la densidad del terraplén capilar activo | fabricante: | YOKOGAWA |

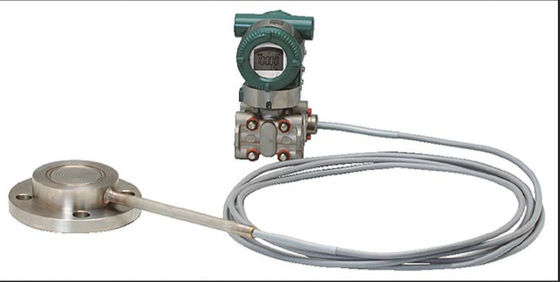

EJA438E-JASCG-917DJ Gauge Pressure Transmitter with Remote Diaphragm Seal
Description:
Manufacturer : Yokogawa
Product No. : EJA438E-JASCG-917DJ-WA22C1SW00-BA25/KU22/D4/A/M2W/T53
Product type : EJA438E Diaphragm sealed gauge pressure transmitter
EJA438E : Diaphragm sealed gauge pressure transmitter
J - Output signal : 4 to 20 mA DC with digital communication (HART 5/HART 7 protocol)
A - Measurement span (capsule) : 0.06 to 3.5 MPa (8.6 to 500 psi)
S : Always S
C : Always C
G - Coverflange bolts and nuts material : 316L SST
9 - Installation : Horizontal piping type and left side high pressure
1 - Amplifier housing : Cast aluminum alloy
W - Process connection style : Flush type
SW - Wetted parts material : 316L SST(Diaphragm) 316L SST (others)
0 - Flushing connection ring : None
0 - extension : none
Weight : 9.8 Kg
Shipping weight : 12 Kg
EJA438E Standard features include:
± 0.2% Accuracy
200 ms Response Time
Exida and TUV SIL2 / SIL3 Certified
Local Parameter Setting (LPS)
10-segment Signal Characterizer
Active Capillary Fill Fluid Density Compensation
Additional Informaiton:
EJX110A Differential Pressure Transmitter
EJX118A Diaphragm Sealed Differential Pressure Transmitter
EJX130A Differential Pressure Transmitter
EJX120A Differential Pressure Transmitter
EJX310A Absolute Pressure Transmitter
EJX430A Gauge Pressure Transmitter
EJX440A Gauge Pressure Transmitter
EJX510A and EJX530A Absolute and Gauge Pressure Transmitter
EJX610A and EJX630A Absolute and Gauge Pressure Transmitter
EJX210A Flange Mounted Differential Pressure Transmitter
EJA110E Differential Pressure Transmitter
EJA115E Low Flow Transmitter
EJA118E Diaphragm Sealed Differential Pressure Transmitter
EJA510E and EJA530E Absolute and Gauge Pressure Transmitter
EJA120E Differential Pressure Transmitter
EJA130E Differential Pressure Transmitter
EJA210E Flange Mounted Differential Pressure Transmitter
EJA310E Absolute Pressure Transmitter
EJA430E Gauge Pressure Transmitter
EJA438E Diaphragm Sealed Gauge Pressure Transmitter
EJA438E/Z Diaphragm Sealed Gauge Pressure Transmitter (Inner Diaphragm type)
EJA440E Gauge Pressure Transmitter
EJA530E In-Line Mount Gauge Pressure Transmitter
| EJA438E-DASCG-912DB-WJ13B2SW00-BA22 |
| EJA438E-JBSCG-917DJ-WA22C2TW00-BA25 |
| EJA438E-JASCG-917DJ-WA22C1SW00-BA25 |
| EJA438E-DASCC-91DN-WA12C2TW00-AA25 |
| EJA438E-JASCG-919EB-WD22C2SW00-AA23 |
| EJA438E-JASCG-919DB-WD23B2SW00-BA2 |
| EJA438E -DASCC-91DN-WA12C2TW00-AA25 |
| EJA438E-DASCC-917DN-WA12C2TW00-AA25 |
| EJA438E-JASCG-912NN-WD43C2SW00-AA22/D4 |
| EJA438E-JASCG-912DN-WD43C2SW00-BA22/D4 |
| EJA438E-DBSCG-912DB-WZ2B2HW00-AA25/D3/N4 |
| EJA438E-JASCJ-914EB-WA22C1SW00-CA23/KU22/T53 |
| EJA438E-FBSCG-919DB-WA12C1SW00-1A2A/X2/D3/M2W/T52 |
| EJA438E-JBSCG-917DJ-WA22C2TW00-BA25-KU22/D4/A/M2W/T56 |
|
EJA438E-JASCG-917DJ-WA22C1SW00-BA25/KU22/D4/A/M2W/T53 |
